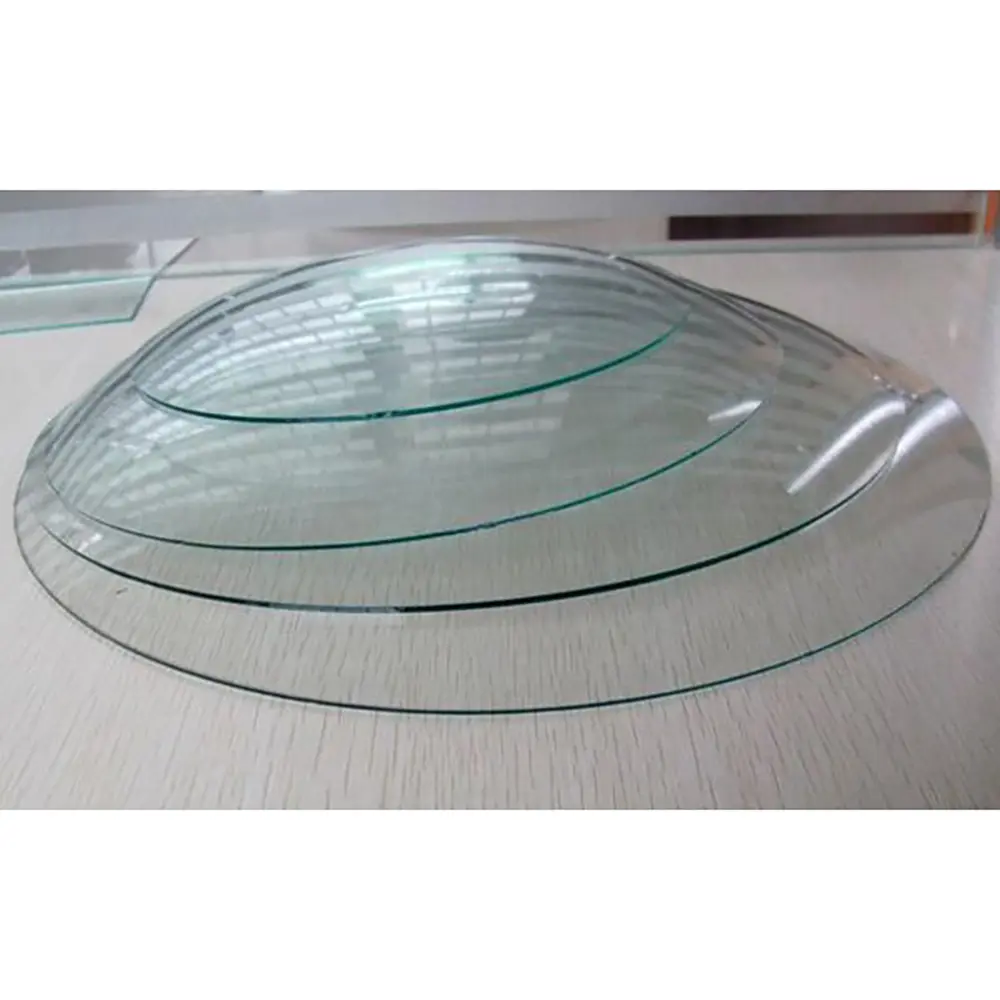

Hot bended glass, which is made of float glass, is firstly heated to softening point on metal mould and then bent to shape by weight of glass itself and outside force, then finally cooled down. Hot curved glass/bended glass/bent glass can be further processed into insulated glass, tempered and laminated glass, etc.
Applications: Hot bended glass is used in curtain wall with curved structure, skylight, sightseeing elevator, hyperboloid and taper shaped buildings. Hot curved tempered glass/bended glass/bent glass is widely used in esthetics architecture field for beautiful appearance. Hot bended glass/bent glass is extensively used in shower door glass, fencing glass, revolving door glass, high quality furniture glass and architectural situations
Specifications: Terms Condition Size 2000*1050mm, 1650*1300mm, 3300*2140mm, 400*400mm, r=400mm/600/800mm etc.
Thickness 3mm, 4mm, 5mm, 5.5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm etc. Competitive Advantage:
1. Good accuracy in arc, less light aberration.
2. Safety, mechanical attack resistance performance and thermal stability.
3. Anti-wind pressure ability and deflection performance. 1. The anti-impacting performance and anti-bending performance of hot curved tempered glass/heat bent glass are 3-5 times higher than ordinary glass. 2. Hot curved tempered glass/heat bent glass breaks into granules in case of strongly knocked, so no hurt would be caused. 3. Deflection angle of hot curved tempered glass/heat bent glass is 3-4 times larger than that of float glass with same thickness. When there is load on hot curved tempered glass/heat bent glass, its maximum tensile stress does not locate on the glass surface as float glass, but on the central point of glass sheet.
Bent glass/hot curved glass/hot bended glass features: Safety performance: Bent glass/hot curved glass/bended glass will appear hurtless obtuse angles when breakage. Strength performance: Four times more than ordinary glass.
Heat stability: Three times more than ordinary glass, could bear temperature change about 200 °C.
Hot Bended Glass is a type of curved glass produced by heating flat glass to a softening point and shaping it over a mold. After controlled cooling or tempering, it becomes a strong, durable, and precisely curved glass product used in modern architectural applications.
As a professional hot bended glass manufacturer and supplier in China, we produce high-quality curved glass with accurate radius control, smooth surface finishing, and excellent optical clarity. Our production ensures stable performance for both structural and decorative building applications.
Hot Bended Glass is widely used in architectural projects requiring permanent curved shapes with high strength and aesthetic appeal.
